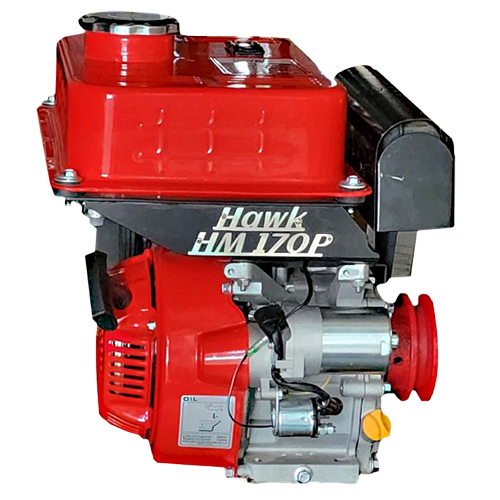

7.5 HP Petrol Engine, Multipurpose Model, Recoil & Self Start, Model: HM-170P

Product Information

• Model  :  HM 170 P (Yamaha Type)

• Engine Type :       OHV25°Inclined, single cylinder, 4 strokes, S.I, Forced air cooling
• Displacement(cc)  :  223cc
• Bore Stroke (mm)    :  70mm×58mm
• Maximum Power  :7.5 hp/3600rpm

• Rated / Continuous Power  :  6.0 hp/3600rpm

• Max Torque N.m(r/m)  : 12.0N.m/2500rpm

• Working Speed :  3000 – 3600 rpm
• Idle Speed   :  1700 ± 150 rpm
• Compression Ratio  :  8.5:1
• Valve Clearance  : Suction Valve0.10±0.02;Exhaust Valve0.15±0.02
• Ignition System   : Transistor Magneto
• Starting System :  Recoil Start / Electric Start
• Spark Plug Clearance  :    0.7-0.8 mm
• Lubrication System  : Splash Type
• Governor System  :  Centrifugation Mechanical
• Air Cleaner   :  Semi Dry, Oil Bath, Dual
• Crankshaft Type :  Keyway Type or Tapper Type
• Power Take Off  : 1:01
• Output Rotate System  :  Clockwise from Flywheel End
• Lube Oil Consumption (KW)(r/min)   :  ≤6.5g/kW .h
• Fuel Consumption(g/kw.h)  :  ≤395g/kW .h
• Engine Oil Type : SAE15W-40/<0℃:SAE5W-30
• Fuel Type    : 93# or Higher-grade Unleaded Petrol
• Engine Oil Capacity(L)    : 0.6 ltr.
• Fuel Tank Capacity(L)  : 7 ltr.

Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation

Packing

GW(kg) Approx.  : 21 Kg. Dimension(L×W×H)(mm)   :  410x365x390
