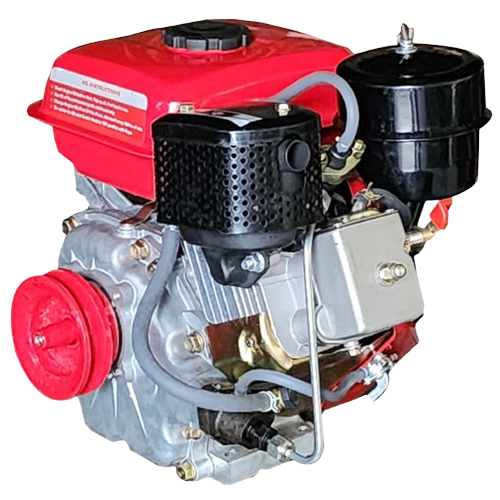

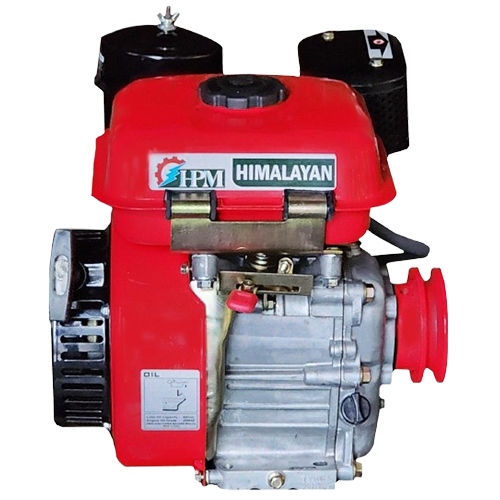

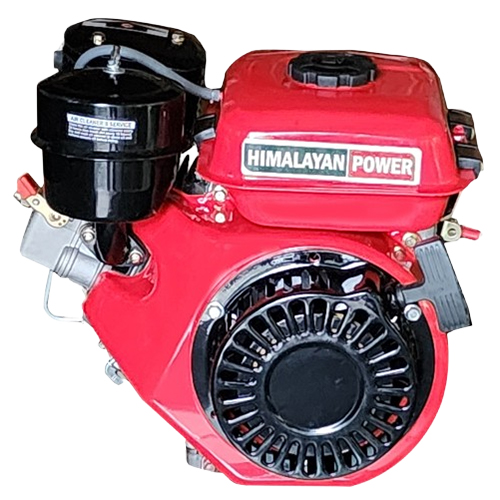

5 HP Diesel Engine, Multipurpose Model, Recoil & Self Start, Model: GE 170 FD

Product Information

• Model :   Aero GE 170-FD
• Engine Type :  4-Stroke, OHV, Single Cylinder, Direct Injection, Swirl Chamber, Inclined type
• Displacement(cc)  :  208cc
• Bore Stroke (mm)   :  70*54 mm
• Maximum Power  :  3.7 K.W. at 3600 RPM
• Rated / Continuous Power  : 2.6 K.W. at 3600 RPM
• Working Speed  : 3000 – 3600 rpm
• Idle Speed  : 1700 RPM ± 100
• Compression Ratio  : 22:01
• Starting System :  Recoil Start / Electric Start
• Lubrication System :  Splashing
• Air Cleaner :  Semi Dry, Oil Bath, Dual
• Crankshaft Type : Keyway Type
• Power Take Off  : 1:01
• Lube Oil Consumption (KW)(r/min) :   ≤4.08 gm./Kw. hr.
• Fuel Consumption(g/kw.h)  :  ≤290 g/kw/h
• Fuel Type     :   Standard Diesel
• Engine Oil Capacity(L) :   700 ml.
• Fuel Tank Capacity(L) :   3 ltr.

Packing

• Gross Weight (Approx) :   22 Kg.
• Dimension(L×W×H)(mm)  :  380x345x335

Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation.
