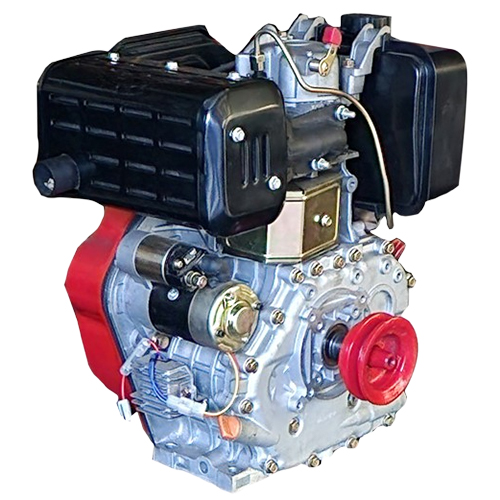

13 HP Diesel Engine, Multipurpose Model, Recoil & Self Start, Model: GE 192 FD

Product Information

• Model :   GE-192FD

• Engine Type : 4-Stroke, OHV, Vertical, Single Cylinder, Direct Injection
• Displacement(cc)  :  499cc
• Bore Stroke (mm)   :  92*75 mm

• Maximum Power  :  9.7 K.W. at 3600 RPM

• Rated / Continuous Power  : 8.2 K.W. at 3600 RPM
• Working Speed  : 3000 – 3600 rpm
• Idle Speed  : 1700 RPM ± 100

• Compression Ratio  : 19:01
• Starting System : Electric Start
• Lubrication System : Pressure & Splashing
• Air Cleaner :  Semi Dry, Oil Bath, Dual
• Crankshaft Type : Keyway Type
• Power Take Off  : 1:01
• Lube Oil Consumption (KW)(r/min) :   ≤4.08 gm./Kw.hr.

• Fuel Consumption(g/kw.h)  :  ≤275 g/kw/h
• Fuel Type     :  Standard Diesel

• Engine Oil Capacity(L) :   1700 ml.

• Fuel Tank Capacity(L) :     5.5 ltr.

Packing

• Gross Weight (Approx) :   52 Kg.
• Dimension(L×W×H)(mm)  :  460x425x495

Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation.
